Düz Tip Silindir Pistonu

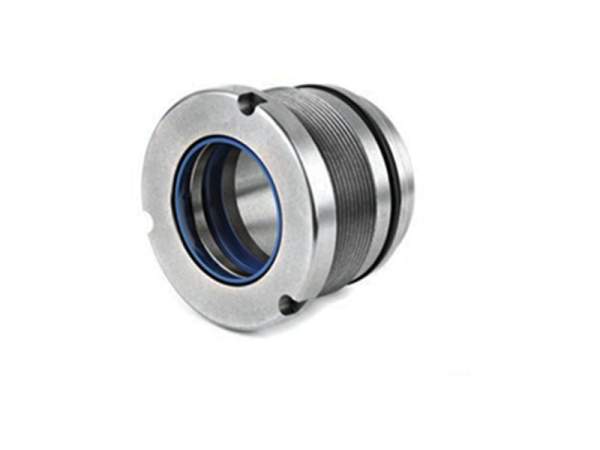

Çelik Silindir Boğazı
Vidalı Tip Silindir Pistonu
gdc hidrolik logo
ÜRÜN KODU KOMPAKT SET O-RING D D1 L
GDC-P 32×15 32x24x15.5×3.10 YOK 32 15 32
GDC-P 35×16 35x25x16.4×6,35 16×3 35 16 40
GDC-P 40×16 40x32x15.5×3,20 16×3 40 16 40
GDC-P 40×20 40x32x15.5×3,20 20×3 40 20 40
GDC-P 45×20 45x35x16,4×6,35 20×3 45 20 40
GDC-P 50×16 50x38x20,5×4,20 16×3 50 16 40
GDC-P 50×20 50x38x20,5×4,20 20×3 50 20 40
GDC-P 50×30 50x38x20,5×4,20 30×3 50 30 40
GDC-P 55×20 55x39x20,5×3,10 20×3 55 20 40
GDC-P 60×20 60x48x20,5×4,20 20×3 60 20 40
GDC-P 63×20 63X51X20,5X4,20 25×3 63 20 40
GDC-P 63×25 63x51x20,5×4,20 25×3 63 25 40
GDC-P 63×30 63x51x20,5×4,20 30×3 63 30 40
GDC-P 65×25 65x49x20,5×3,10 25×3 65 25 40
GDC-P 70×25 70x58x20,5×4.20 25×3 70 25 40
GDC-P 70×30 70x58x20,5×4.20 30×3 70 30 40
GDC-P 75×32 75x55x22,4×6,35 32×3 75 32 50
GDC-P 80×27 80x66x22,4×5,20 27×3 80 27 50
GDC-P 80×30 80x66x22,4×5,20 30×3 80 30 50
GDC-P 85×32 85x65x22,4×6,35 32×3 85 32 50
GDC-P 90×30 90x76x22,4×5,20 30×3 90 30 50
GDC-P 100×33 100x86x22,4×5,20 33×3 100 33 50
GDC-P 100×40 100x86x22,4×5,20 40×4 100 40 50
GDC-P 110×40 110x96x22,4×5,20 40×4 110 40 50
GDC-P 115×40 115x101x22,4×5,20 40×4 115 40 50
GDC-P 120×40 120x106x22,4×5,20 40×4 120 40 50
GDC-P 125×40 125x103x26,5×5,10 40×4 125 40 50
GDC-P 130×40 130x105x25,4×6,35 40×4 130 40 60
GDC-P 140×40 140x123x26,5×7,20 40×4 140 40 60
GDC-P 150×40 150x125x25,4×6,35/1 40×4 150 40 60
GDC-P 160×50 160x143x26,5×7,20 50×4 160 50 60
GDC-P 170×50 170x145x25,4×12,70 50×4 170 50 65
GDC-P 180×50 180x163x26,5×7,20 50×4 180 50 60
GDC-P 190×50 190x165x25,4×12,7 50×4 190 50 65
GDC-P 200×55 200x175x25,4×12,70/1 55×4 200 55 65
GDC-P 220×70 220x190x35,4×6,35/1 70×4 220 70 70
GDC-P 230×70 230x205x25,4×12,70 70×4 230 70 70
GDC-P 250×80 250x225x25,4×12,70 80×4 250 80 70
