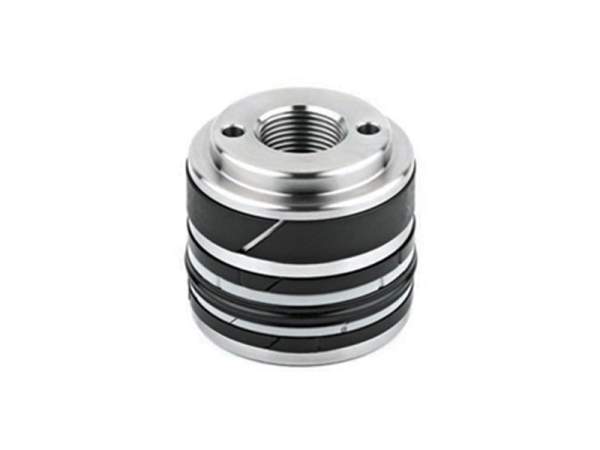

Tek Yataklamalı Vidalı Tip Silindir Pistonu

1040 / 1050 Çelik Piston Tek Yataklamalı Vidalı Tip

ÜRÜN KODU	KOMPAKT SET	YATAKLAMA	O-RING	D	D1	L	L1	DİŞ
GDC-PV-Y50	50x38x20,5×4,20	45x50x15	24,99×3,53	50	25	65	30	22×1,5
GDC-PV-Y60	60x48x20,5×4.20	55x60x15	29,75×3,53	60	30	65	30	27×2
GDC-PV-Y63	63x51x20,5×4,20	58x63x9.5	29,75×3,53	63	30	65	30	27×2
GDC-PV-Y70	70x58x20,5×4.20	65x70x15	29,75×3,53	70	30	65	30	27×2
GDC-PV-Y80	80x66x22,4×5,20	75x80x15	34,52×3,53	80	35	70	30	30×2
GDC-PV-Y90	90x76x22,4×5,20	85x90x15	39,70×3,53	90	40	70	30	35×2
GDC-PV-Y100	100x86x22,4×5,20	95x100x15	45×4	100	45	70	30	40×2
GDC-PV-Y110	110x96x22,4×5,20	105x110x15	45×4	110	45	70	30	40×2
GDC-PV-Y115	115x101x22,4×5,20	110x115x15	45×4	115	45	70	30	40×2
GDC-PV-Y120	120x106x22,4×5,20	115x120x15	50×4	120	50	70	30	45×2
GDC-PV-Y125	125x103x26,5×5,10	120x125x15	50×4	125	60	70	30	50×2
GDC-PV-Y130	130x105x25,4×6,35	125x130x15	60×4	130	60	70	30	50×2
GDC-PV-Y140	140x123x26,5×7,20	135x140x15	60×4	140	60	80	30	55×2
GDC-PV-Y150	150x125x25,4×6,35/1	145x150x15	65×4	150	65	80	30	60×2
GDC-PV-Y160	160x143x26,5×7,20	155x160x15	65×4	160	65	80	30	60×2
GDC-PV-Y170	170x145x25,4×12,70	165x170x15	75×4	170	85	90	30	80×2
GDC-PV-Y180	180x163x26,5×7,20	175x180x15	75×4	180	75	80	30	70×2
GDC-PV-Y200	200x175x25,40×12,70/1	195x200x15	80×5	200	80	85	35	75×2
GDC-PV-Y220	220x190x35,40×6,35/1	215x220x15	100×5	220	100	90	40	95×2
GDC-PV-Y250	250x225x25,40×12,70	245x250x15	100×5	250	100	90	40	95×2
